SIRAC WATER TO WATER HEAT PUMP uses the soil or groundwater as the heat source. Your energy cost for heating can be lowered by up to 80% with the use of SIRAC water to water heat pumps.
Features:
1.Has been tested and designed in accordance with Europeen standard EN14511.
2.LCD display control panel
3.Automatic unit on/off timer clock
4.Dozens of protections enable the unit to operate safely and reliably.
5.Automatic switch between space heating mode and hot water heating mode, with hot water function as the priority.
6.Automatic adjustment of water temperature in accordance with ambient temp in space heating mode
7.Cold water function optional

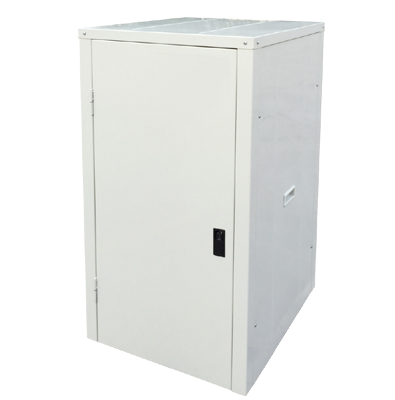

Model: LSQ04RW
Outlet Water Rated. Temp: 35°C
Outlet Water Max. Temp: 60°C
Heating Capacity B0/W35: 9.5KW
Heating Capacity W10/W35: 12KW
Power Consumption W10/W35: 2.4KW
Power Supply: 220V/1PH/50HZ
Compressor Type: Scroll
Compressor Qty: 1
Refrigerant Type: R407C
Flow Restriciton: Alco Thermal Expansion Valve
Heat Exchanger Type: 316 Stainless Steel Brazed Plate
Pipe size (inch): 1"
Dimensions (L*W*H): 600*600*930mm
Note:
1.B0/W35: Brine inlet temperature at 0℃, brine outlet temperature at -3℃, water inlet temperature at 30℃,water outlet temperature at 35℃.
2. W10/W35: Primary water inlet temperature at 10℃, primary water outlet temperature at 7℃, secondary water inlet temperature at 30℃, secondary water inlet temperature at 35℃
|
